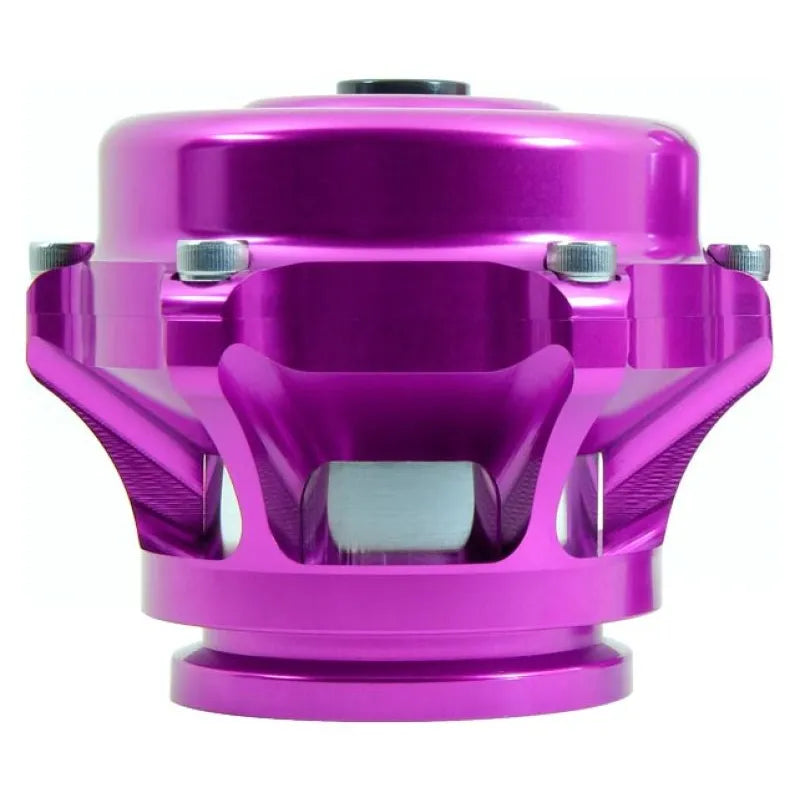

TiAL Sport Q BOV 6 PSI Spring - Purple

The TiAL Q is the highest flowing BOV on the market. It bolts up to any standard TiAL flange without re-welding. The body and all internal components are CNC-machined from 6061 aluminum alloy. It features a large 1.98 inch (50.5mm) valve. The V-Band design aluminum mounting clamp uses Stainless Steel hardware for a long-lasting, corrosion-free appearance. The valve seal uses a Viton O-ring clamped in place to prevent sticking. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance. It includes a machined aluminum banjo-type air fitting and bolt with an oversized 10mm hose barb for quick actuator response. The actuator has a high-temp silicone Nomex-reinforced diaphragm. An aluminum or mild steel weld base mounting flange is furnished (stainless steel available at additional cost). The 6061 aluminum housing allows for various anodized colors (Silver, Red, Blue, Purple, Black). A single Q BOV can support up to 1,800hp, and a -2psi spring is available for supercharged applications.
