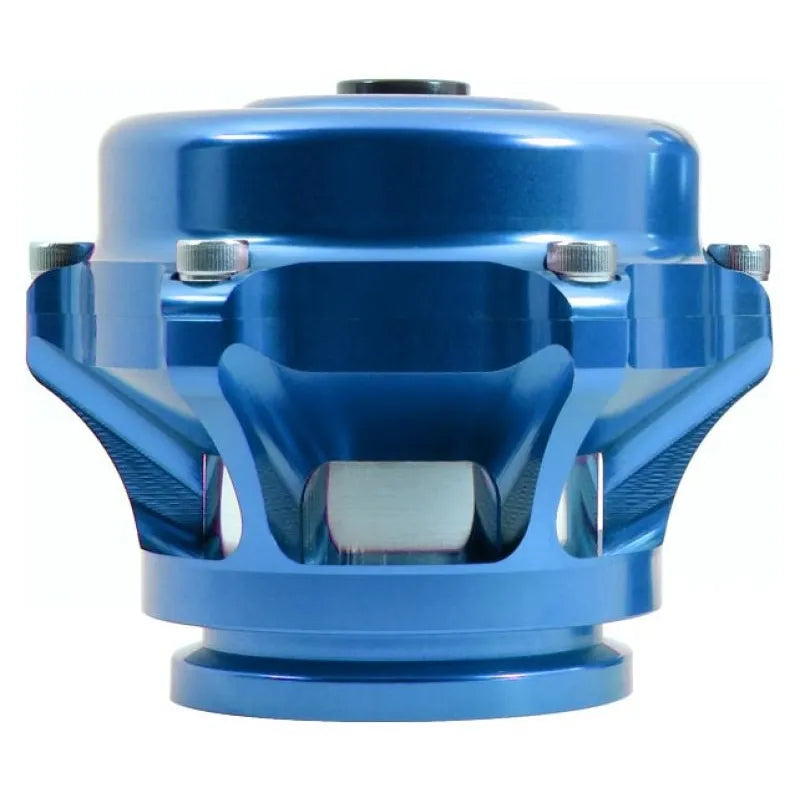

TiAL Sport Q BOV 8 PSI Spring - Blue

The TiAL Q Series blow-off valve flows 60% more than its predecessor, the original BV50, and bolts to any standard TiAL flange without welding. It includes a weld mounting flange (available in aluminum, mild steel, and stainless steel) cut for 2-1/2'' pipe and a CNC machined aluminum V-band mounting clamp with stainless steel hardware for a durable, corrosion-free appearance. A banjo-type aluminum air fitting and bolt with 1/4'' hose barb allow quick actuator response. Springs are available to accommodate various vacuum levels and supercharged applications. The body and all internal components are CNC-machined from 6061 aluminum alloy, featuring a large 1.98 inch (50.5mm) valve. The V-Band design aluminum mounting clamp uses Stainless Steel hardware for a long-lasting, corrosion-free appearance. The valve seal utilizes a Viton O-ring that is clamped in place to prevent sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance. It comes with a machined aluminum banjo-type air fitting and bolt, with oversized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life. An aluminum or mild steel weld base mounting flange is furnished with each unit (Stainless Steel available at additional cost). The 6061 aluminum housing can be anodized with a selection of colors (Silver, Red, Blue, Purple, Black). A single Q BOV can support up to 1,800hp. It is suitable for use on turbo-charged and super-charged applications (Paxton, Vortec, etc.).
