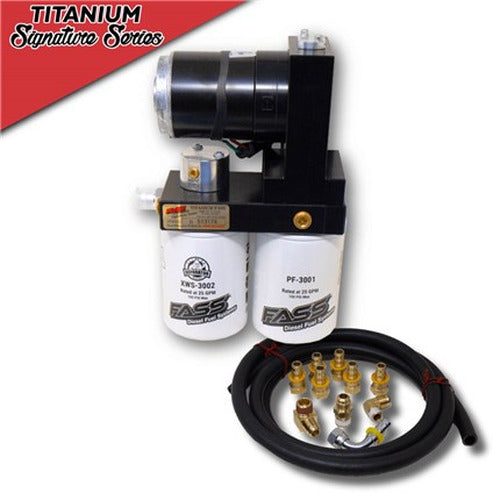

Titanium 165 GPH Fuel Pump System

Rated at 165 gallons per hour, it can support significant fueling upgrades for your Dodge Cummins 5.9L or 6.7L engine. The system boasts an improved filtration rating of 2 microns, a built-in water separation filter, and FASS's patented air/vapor removal process, all contributing to the protection of your injection system and the longevity of your Bosch injection system and injectors. Installation is expedited with the included FASS BHF-1005 Bulkhead and Suction Tube Kit. Machined from 6061 T-6 Billet Aluminum, these fittings serve as both suction and return tubes, mounting directly to the fuel tank module. This design eliminates the need to cut the filler neck. The PTFE Teflon pickup tube can be trimmed to fit various fuel tank depths, allowing for safe operation even when the fuel level is below 1/8 tank. Key features include a 16-18 PSI preset fuel pressure, 165 GPH flow rating, 2-micron filtration, and protection for injectors. The system is also designed for improved cold weather starts, decreased emissions, and quieter operation with a 1,000,000-mile motor warranty and a 30,000-mile filter life expectancy. This system is specifically designed for 2005-2018 and 2021-2024 Dodge Ram 2500, 3500, 4500, and 5500 models with Cummins engines. Installation on a cab and chassis may require modifications.
