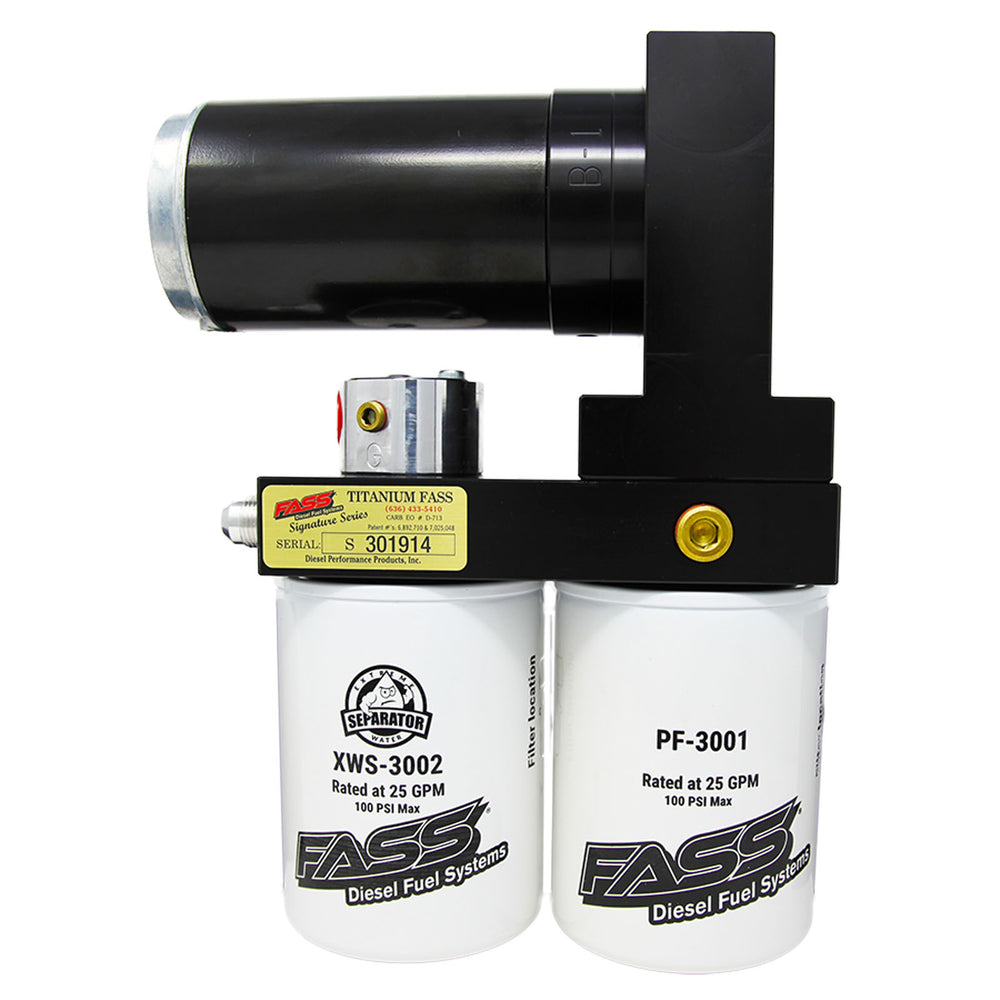

Titanium Signature Series 240 GPH Fuel Pump

The FASS Titanium Signature Series fuel pump (TSD10250F240G) is a complete replacement system engineered to be the top performing, longest lasting, and most reliable aftermarket filtration system for diesel engines. It is specifically designed for 1994-1998 Dodge Ram 2500 and 3500 trucks equipped with the 5.9L Cummins 12V engine. This system boasts a verified flow rate of 240 gallons per hour at a preset 45 PSI, capable of supporting engines from 900 to 1200 HP. Advanced filtration is a key feature, including a 2-micron rating to protect injection systems and Bosch Diesel Injectors, a built-in water separation filter, and FASS's patented air/vapor removal process. These benefits enhance engine operation, extend the life of fuel injection components, and can improve horsepower, idle quality, throttle response, fuel economy, and lower EGTs. The kit includes a bulkhead fitting and suction tube, both machined from 6061 T-6 billet aluminum. The bulkhead fitting serves as both a suction tube and return port, featuring a 5/8-inch suction tube and a 1/2-inch fuel return port. This improved design allows for direct plumbing of the FASS return line to the bulkhead fitting, eliminating cutting of the filler neck and speeding up installation. The PTFE Teflon pickup tube can be cut to fit various fuel tank depths, allowing safe operation down to 1/8 tank. Further enhancing the system are FASS Whisper Technology for reduced noise levels without sacrificing flow, Performance Radius Cuts (PRC) to improve fuel flow and prevent air/vapor reintroduction, and Mass Flow Return (MFR) technology for continuous fuel polishing. Installation is simplified with new bolt-on brackets that utilize factory bed bolts. The system is made in the USA and comes with a limited lifetime warranty.
