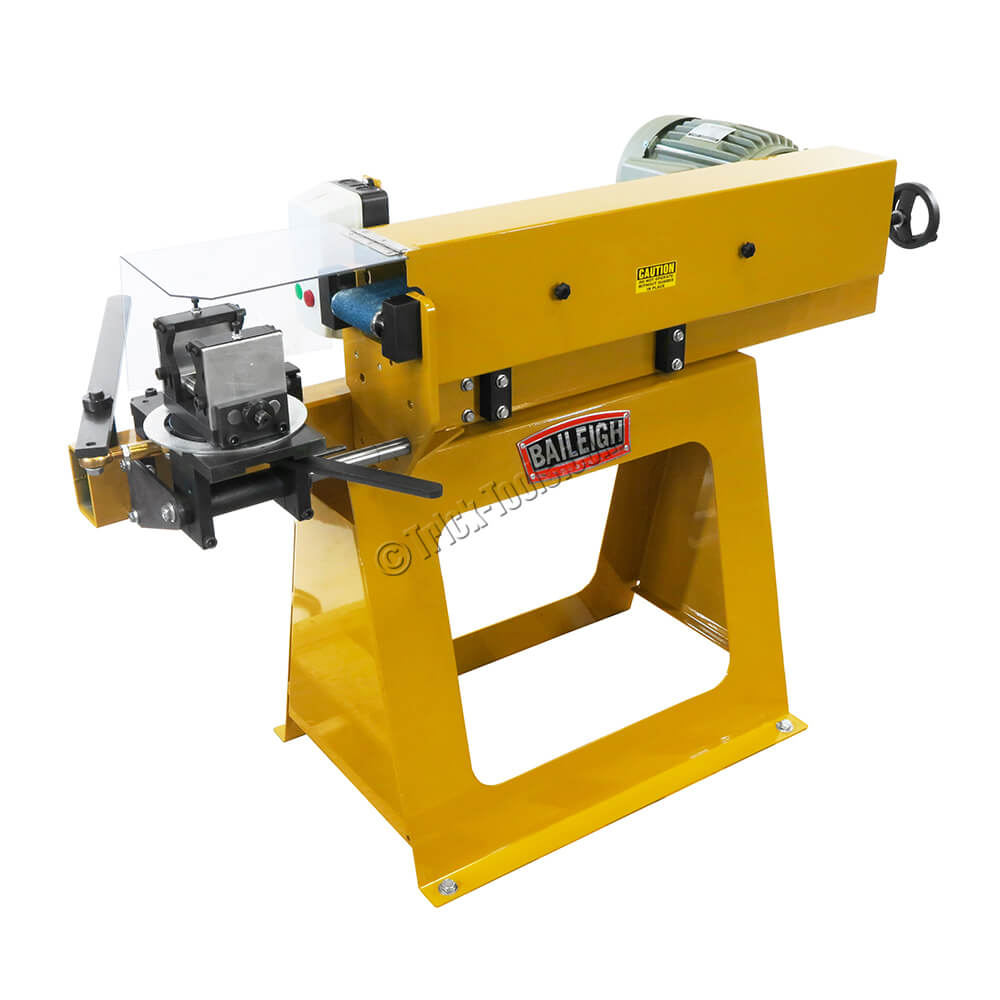

TN-600; 220V 1PHASE 5HP ABRASIVE BE

The TN-600 abrasive tube notcher uses industrial grade mechanical and electrical components and a logical design to notch through tubing and pipe with ease. The spindle size allows for an industry standard 6 x 79 inch belt to be used. This 6 inch wide surface allows this tubing notcher to cope at maximum capacity of 3 inch OD at angles up to 60 degrees. Smaller 4 inch wide belts can be used as well if notching only up to 2 inch OD at angles up to 60 degrees. Additional mandrel spindles are required for each different OD to be notched. The belt drive on this powerful tube notcher has a large diameter urethane drive wheel for maximum grip of the belt drive which is important when notching at maximum capacity. The motor and drive wheel are on a spring suspension to take up any belt stretching that may take place and there is also a fine tune adjustment for belt tracking. This machine has a powerful 5 hp motor that notches at full capacity with ease and only requires 220 volts of single phase power, so it can be used in almost all fabrication shops.
