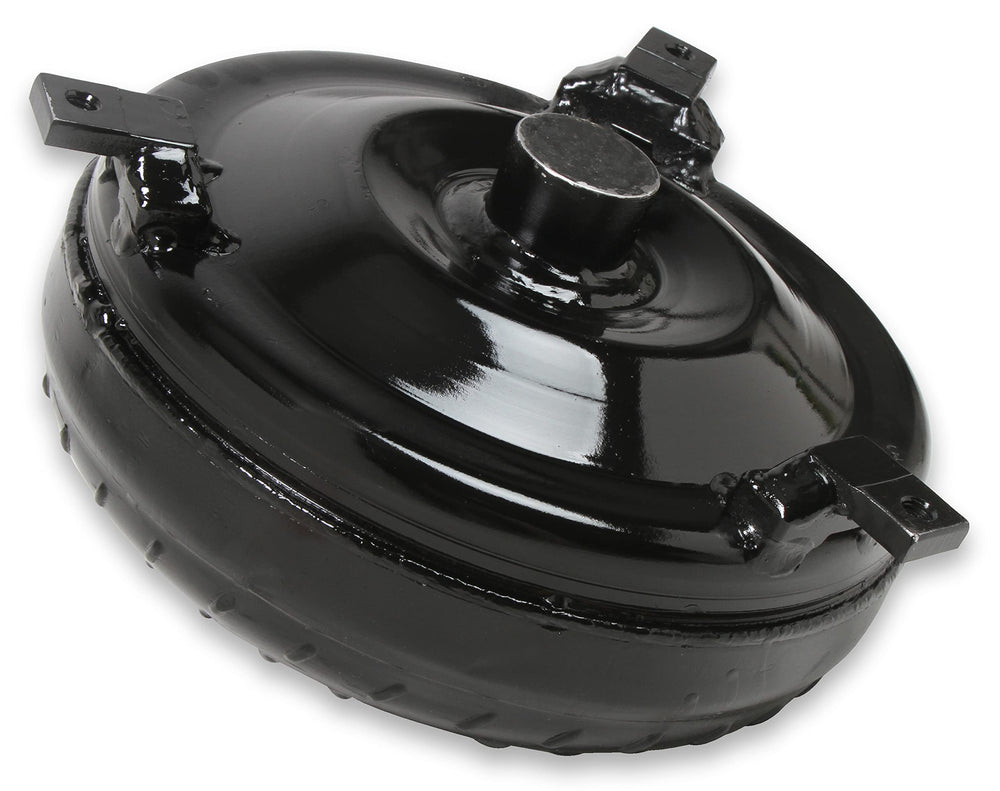

9.6 Inch Diameter Torque Converter With 11-1/8 Inch Bolt Pattern 3200-3600 RPM Stall Hays

Part #: 97-1H32F

Hays Twister Full Race Torque Converters feature a custom designed anti-balloon plate to stop any converter ballooning and swelling in racing situations. These torque converters are designed for use with a trans-brake and great for power adders such as nitrous, superchargers, and turbos.They are available with various RPM stall speed offerings to accommodate any mixture of modifications including higher compression ratios, aftermarket camshafts, aftermarket cylinder heads, lower gear ratios, and vehicle weight loss.Features and Benefits:All Full Race series converters are built, tested, and proven to support up to 1,000 horsepowerFeatures a custom anti-balloon plate designed to stop potential torque converter ballooningDesigned to handle the extreme shock and abuse of trans-brakes, nitrous oxide, superchargers, and turbochargersState of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperatureEach converter is hand-built and inspected in every step of assembly to ensure top of the line qualityAll Hays torque converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistencyHeavy duty Torrington bearings are used for greater strength and durabilityStators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applicationsIncreased horsepower and acceleration due to a weight saving, one application design. Almost all Hays converters are built for one application to reduce weight compared to a multi-bolt pattern converter.Full Race series torque converters are offered in several different stall speeds for popular automatic transmissionsIndustry leading Tech Support Team is available to provide assistance with stall speed selectionDetails:Anti-Balloon Plate: YesBalanced: YesBolt Circle: 11-1/8 InchCrank Pilot Diameter: 1.703 InchDiameter: 9.6 InchEmission Code: 5Input Spline: 30Lock Up/Overdrive: NoSeries: Full RaceStall: 3200-3600Transmission: 4L60E|4L65E|4L60E|4L65EUse with Power Adder: YesUse with Trans-Brake: YesApplication Summary:1302 2003-2008 Isuzu Ascender LS Limited Base S1996-2000 Isuzu Hombre XS S2006 Isuzu i-280 Base2006 Isuzu i-350 Base2007-2008 Isuzu i-290 S LS2007-2008 Isuzu i-370 LS2004-2007 Buick Rainier CXL CXL Plus1994-1996 Buick Roadmaster Base Estate Wagon Limited Estate Wagon Collector's Edition Limited Collector's Edition Collector's Edition1994-1996 Buick Commercial Chassis Base2003-2006 Cadillac Escalade ESV Base2002-2006 Cadillac Escalade EXT Base1994-1996 Cadillac Commercial Chassis Brougham Base1994-1996 Cadillac Fleetwood Brougham Base1999-2006 Cadillac Escalade Base2009-2014 Chevrolet Express Cargo Base LS2009-2015 Chevrolet Express Pasajeros Base2002-2006 Chevrolet Trailblazer EXT LT North Face LS2003-2006 Chevrolet SSR Base2004-2012 Chevrolet Colorado Sport LS Z71 Z71 LS Z85 LS Sport Z85 LS Base LT WT2007 Chevrolet Silverado 1500 Classic LS LT WT Hybrid SS2007-2008 Chevrolet Avalanche Base LT LTZ LS1993-2005 Chevrolet Astro Base LT CL CS LS2002-2006 Chevrolet Avalanche 1500 Base Z71 On Road Edition North Face LS LT WBH Z661993-2005 Chevrolet Blazer Silverado Silverado Sport Base LT LS Trailblazer Xtreme ZR21993-1999 Chevrolet C1500 WT Silverado Cheyenne Base LS1993-1999 Chevrolet C1500 Suburban Base Silverado LS LT1993-1999 Chevrolet C2500 Cheyenne Silverado Base WT LS1993-1996 Chevrolet C2500 Suburban Base Silverado LS LT1994-2002 Chevrolet Camaro Z28 Base RS Z28 SS1994-1996 Chevrolet Caprice Classic Classic LS1994-2005 Chevrolet Corvette Base Indianapolis 500 Pace Car Collector's Edition Grand Sport 50th Anniversary Edition 50th Anniversary Edition Pace Car1996-2014 Chevrolet Express 1500 Base LS LT1993-1995 Chevrolet G10 Beauville Sportvan Chevy Van1996-2009 Chevrolet Express 2500 Base LS LT1993-1995 Chevrolet G20 Chevy Van Sportvan Beauville2006-2009 Chevrolet Express 3500 Base1993-1995 Chevrolet G30 Sportvan Hi-Cube Chevy Van Beauville1994-1996 Chevrolet Impala SS1993-1999 Chevrolet...Associated Comments:Note: The Full Race series converters are designed to be used with Trans-brakes and power adders such as Nitrous Oxide, Superchargers, or Turbos.Warning: Stall ranges will vary depending on Engine set-up, Weight of vehicle, and Gear Ratio.

Features:

• All Full Race series converters are built, tested, and proven to support up to 1,000 horsepower
• Converters Built/Tested/Proven Support To 1000 HP
• Features a custom anti-balloon plate designed to stop potential torque converter ballooning
• Custom Anita-Balloon Plate
• Designed to handle the extreme shock and abuse of trans-brakes, nitrous oxide, superchargers, and turbochargers
• Extreme Shock And Abuse Of Trans-Brakes
• State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature
• State Of The Art Spray Welding
• Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality
• Hand Built And Inspected In Every Step Of Assembly
• All Hays torque converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency
• Heavy Duty Torrington Bearings
• Heavy duty Torrington bearings are used for greater strength and durability
• For Popular Automatic Transmissions
• Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications
• Increased horsepower and acceleration due to a weight saving, one application design. Almost all Hays converters are built for one application to reduce weight compared to a multi-bolt pattern converter.
• Full Race series torque converters are offered in several different stall speeds for popular automatic transmissions
• Industry leading Tech Support Team is available to provide assistance with stall speed selection

Hays Twister Full Race Torque Converter | 3200-3600 RPM Stall | 9.6 in. dia. | 11.125 in. Bolt Pattern | 30 Spline Input Shaft | 1.703 in. Crank Pilot
