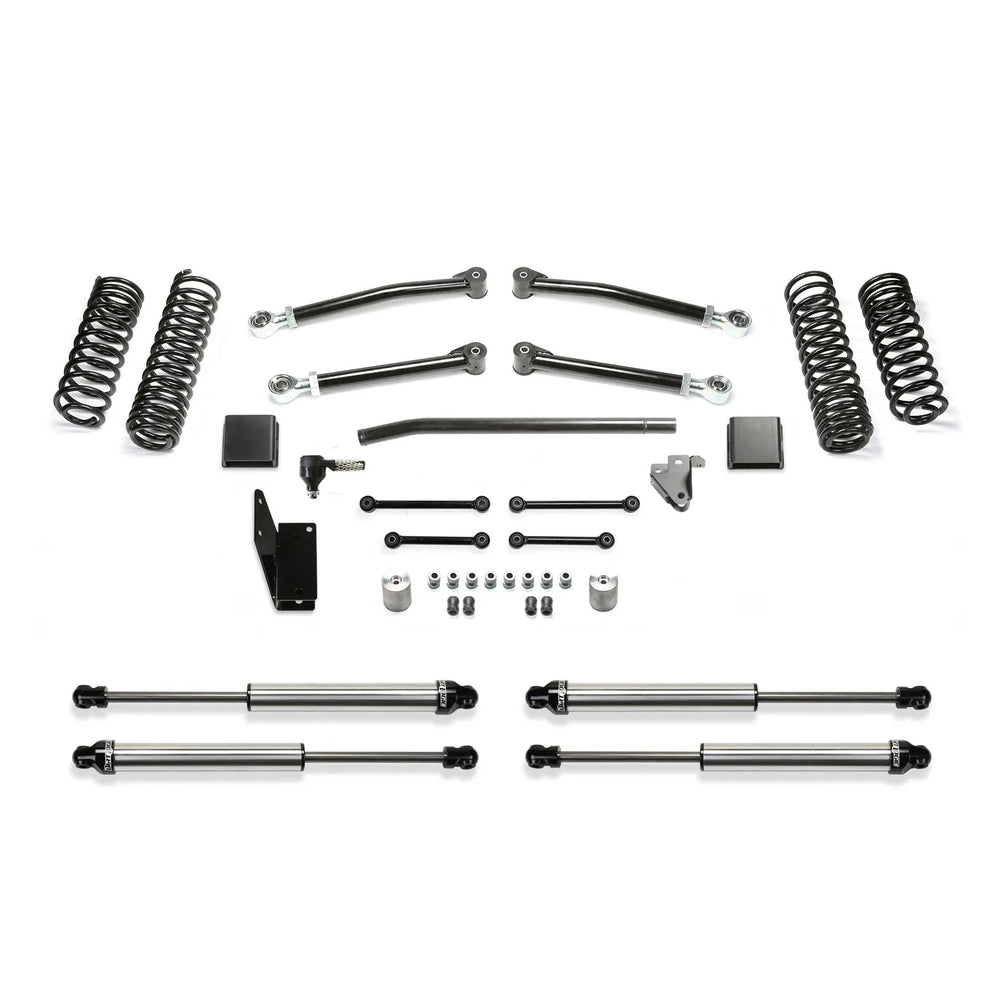

Fabtech 20-21 Jeep JT 4WD Diesel 5in Trail w/ DLSS SHKS

This Fabtech K4197DL 5" Trail Lift Kit with Dirt Logic 2.25 Shocks is engineered to deliver enhanced suspension performance for a wide range of off-highway driving, including rock crawling, aggressive trail use, and overland expeditions. The system is carefully tuned with dual rate coil springs and matched shock valving to provide a smooth, controlled, and highly compliant ride that performs just as well on the road as it does off the pavement. This kit is a complete short arm design that utilizes the factory lower control arm mounting points for a straightforward, bolt-on installation. Fabtech heavy duty lower link arms are constructed from thick wall steel tubing and are guaranteed never to bend under extreme conditions. These arms feature large polyurethane bushings on one end and internal threads on the other to accept Fabtech’s proven 5 Ton Joint®, ensuring exceptional durability, quiet operation, and long service life. Fabtech’s corner-specific dual rate Gladiator coil springs are designed exclusively for the Jeep JT platform, keeping the vehicle level side to side while increasing suspension travel. The initial spring rate delivers a soft, comfortable ride over small bumps, while the secondary rate is tuned to support vehicle payload and absorb larger impacts during aggressive offroad driving. To maintain proper steering geometry with the increased ride height, the system includes a Draglink Flip Kit and a heavy duty front Track Bar bracket. This setup relocates the steering components back to their factory operating planes, allowing full suspension articulation without binding and eliminating bump steer. At the rear, a heavy duty Track Bar bracket recenters the axle beneath the vehicle and helps retain the factory roll center for predictable handling and stability. Front and rear bump stop extensions are included to prevent suspension over-travel and protect critical steering and suspension components. This Jeep Gladiator lift kit is a popular choice for daily drivers who demand dependable offroad capability while retaining comfort and control for long-distance travel and everyday use.
