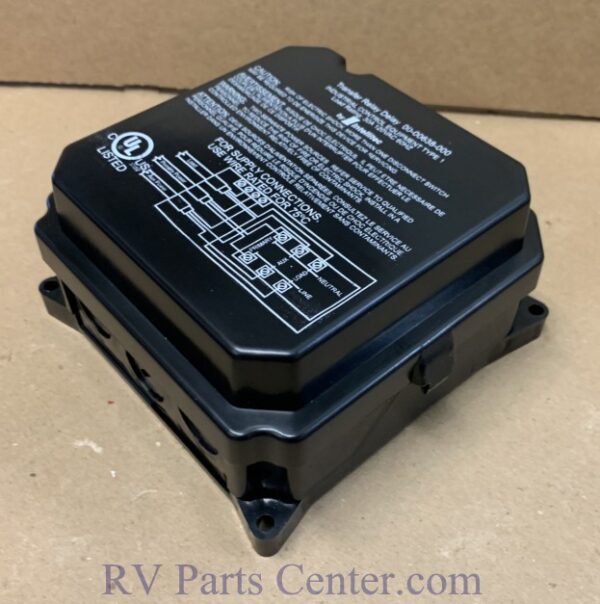

TRANSFER RELAY DELAY 30 AMP

Transfer Relay Delay (Single Phase) 30 Amp, Intellitec 00-00638-000. Replaces 00-00568-000. The Transfer Relay delay is intended to be used in an RV to automatically switch an air conditioner’s power source from shore power to the generator. Normally the air conditioner will receive power from the shore power input. When the generator is started, its power appears at the generator input to the Transfer Relay Delay. After an approximate 20 second delay to allow the generator to warm up, the air conditioner will receive power from the generator. Both power sources are brought into the box and connected to the relay. The power is then fed through the relay to the air conditioner from the appropriate source. When the generator is supplying power, the air conditioner will operate from the generator.
