Drivetrain› Automatic Transmissions and Components

ZF Transmission

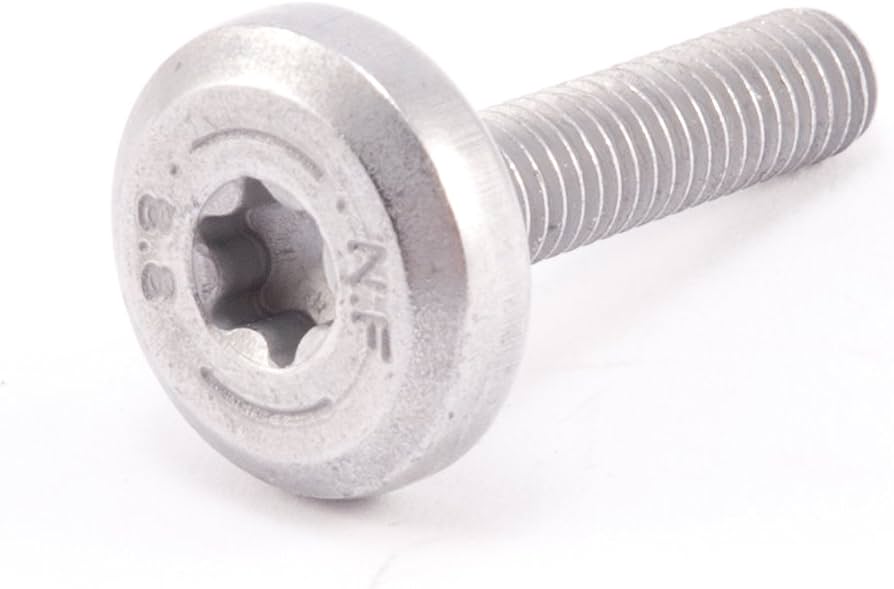

Transmission Oil Pan Bolt M6x28.5mm Torx

$27.09

SKU: 24117552108

Special Order
Special Order
Ships in 4–6 weeks
Free Shipping over $200
$100 Minimum Order
30 Days Return
INSTALL DIFFICULTY
DIY PRO SHOP

Easy — 1–2 hours

Overview

The ZF Automatic Transmission Oil Pan Bolt is an M6x28.5mm Torx bolt designed for one-time replacement during oil pan installation on many ZF automatic transmissions. It features a steel construction and a Torx drive type.
Show original supplier description
The ZF Transmission Oil Pan Bolt is an M6x28.5mm Torx mounting bolt specifically designed for plastic transmission oil pans. This bolt serves as a direct replacement for BMW part number 24117552108. This bolt is recommended for replacement during fluid maintenance on ZF transmissions. For ZF 6-speed automatic transmissions, 21 to 24 bolts may be required depending on the specific model. ZF 8-speed automatics typically require 13 bolts. It is crucial to identify your transmission correctly, as the ZF 6-speed transmission features a black plastic oil pan, while a similar GM 6-speed transmission has a silver metal oil pan. The bolts are not interchangeable between these transmissions. Special application notes indicate that this bolt is not for use with the GM GA6L45R 6-speed automatic transmission. It is sold individually and priced per bolt.

Product descriptions are provided by our supplier partners and may not always be perfectly accurate. Not sure this fits? or call (760) 282-4645 and we’ll verify before you order.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandZF Transmission
Part Number24117552108
CategoryDrivetrain
