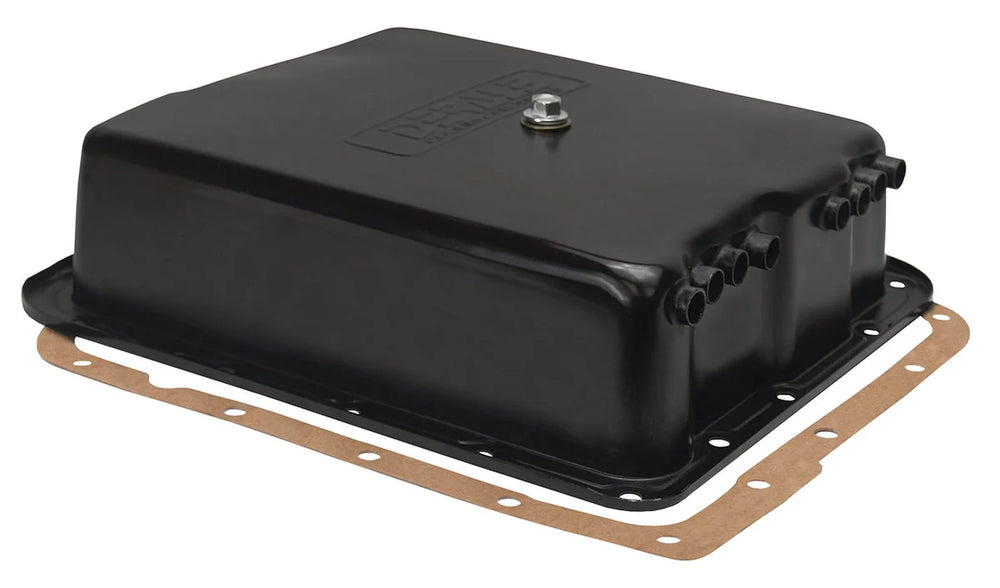

Transmission Pan for GM 700R4/4L60/4L60E

The Derale 14204 transmission cooling pan is engineered to improve the longevity and performance of GM's popular 700R4, 4L60, and 4L60E transmissions. By increasing the fluid capacity by an extra 2 quarts and 4 oz., the pan allows for more efficient heat dissipation, potentially reducing transmission fluid temperatures by up to 50°F. This reduction in heat can significantly extend the life of your transmission and prevent overheating under demanding conditions. Constructed from heavy-gauge stamped steel, this deep sump pan features a 3-5/8 inch depth and a two-stage heat-dissipating black finish. Its design incorporates patented, turbulator-equipped airway tubes that pass through the lower section of the pan, actively aiding in heat transfer. Each pan is individually pressure-tested to guarantee a leak-free performance. The unit also includes a stronger magnetic drain plug with a rubber/steel washer to capture harmful metallic particles, as well as a 1/8" NPT temperature sender bung for easy monitoring of fluid temperature. A neoprene gasket and a 1/8" NPT temperature sender plug are included for a complete installation. This cooling pan is specifically designed to fit GM 700R4, 4L60, and 4L60E transmissions. Installation is straightforward, often requiring only basic hand tools. The included magnetic drain plug helps to maintain transmission health by removing ferrous debris from the fluid. The integrated temperature sender bung allows for the addition of a temperature gauge or sender for real-time monitoring, crucial for performance applications or heavy towing. The durable black finish provides both a clean aesthetic and corrosion resistance.
