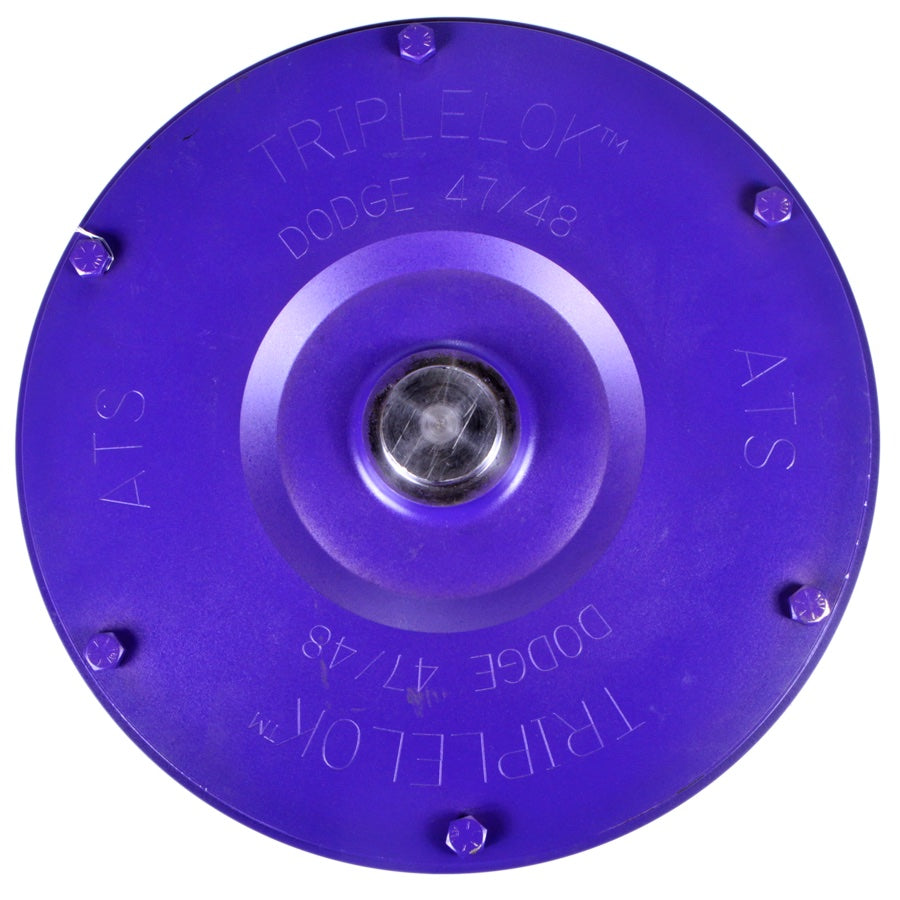

TripleLok Torque Converter for 5.9L Cummins 47RH/RE/48RE

The ATS Diesel Performance TripleLok Torque Converter is engineered to enhance the performance of 1994-2007 Dodge Ram 2500 and 3500 trucks equipped with the 5.9L Cummins engine and 47RH, 47RE, or 48RE transmissions. This torque converter utilizes a patented Viskus Clutch Drive System for improved efficiency and a billet cover with a patented Square Flank Drive tab design. It features robust construction, including Viskus Disc CNC laser-cut clutch plates, a billet piston, redesigned spring dampeners, and 4340 hardened turbine splines for enhanced durability under increased torque loads. The fully welded turbine and impeller vanes, along with a custom stator with high-flow windows, contribute to increased oil flow and overall efficiency. The unit is plasma welded for exceptional strength and includes a full roller bearing construction in high-load areas. Key performance enhancements include an optimized factory stall speed and significantly improved torque multiplication. While stock converters typically offer around 1.25:1 torque multiplication, the ATS TripleLok boosts this to 2.0:1 at peak engine torque. This results in a more responsive feel, improved towing performance, and a better overall driving experience. ATS Diesel backs the TripleLok Torque Converter with a comprehensive 5-year or 500,000-mile warranty, underscoring its reliability for daily driving and demanding towing duties. The specific fitment includes 1994-2007 Dodge Ram 2500 and 3500 trucks equipped with the 5.9L Cummins engine and the specified Chrysler transmissions.
