Turbo Upgrade

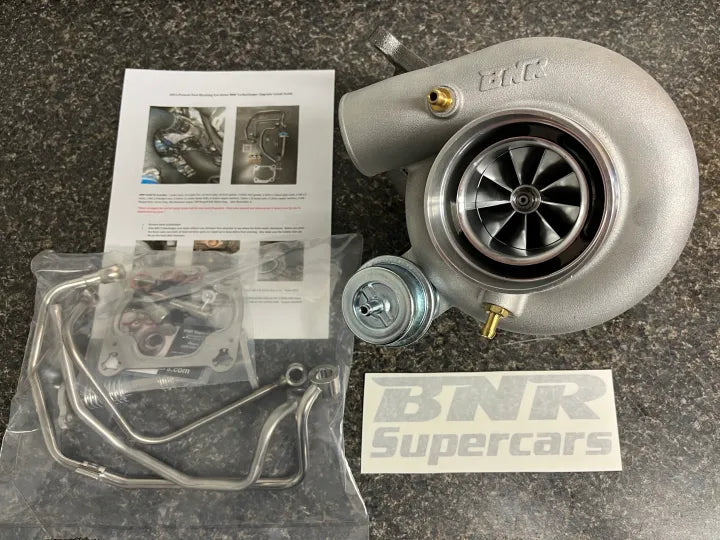

The Function Factory Performance FFP 2015-2023 Ford Mustang EcoBoost BNR 525 Turbo Upgrade Kit is engineered as a direct, bolt-on replacement, requiring no modifications for installation. This BNR525 turbocharger utilizes a proprietary divided, one-piece twin-scroll turbine housing, similar to the OEM design, but with a focus on reducing turbo lag. It features high-efficiency BNR billet compressor and turbine wheels for enhanced horsepower and responsiveness. The compressor wheel is designed with the latest generation blade aero, boasting 11 full blades for a maximum flow rate of 52 lb/min. It also includes a high-pressure 18 PSI wastegate actuator. Detailed specifications for the BNR 525 include a billet 58mm compressor wheel and a 76mm Inconel turbine wheel, housed in a cast twin-scroll .89 a/r turbine housing. This turbocharger is compatible with 2015-2023 Ford Mustang EcoBoost models equipped with the 2.3L engine. Installation is rated at a 6/10 difficulty and requires a tune. Supporting modifications such as an aftermarket exhaust system are recommended for optimal performance. For those seeking maximum power, an XDI High-Pressure Fuel Pump and injectors, along with a built block, may be required. The kit includes new gaskets and silicone couplers, with stainless steel hardware for durability.
