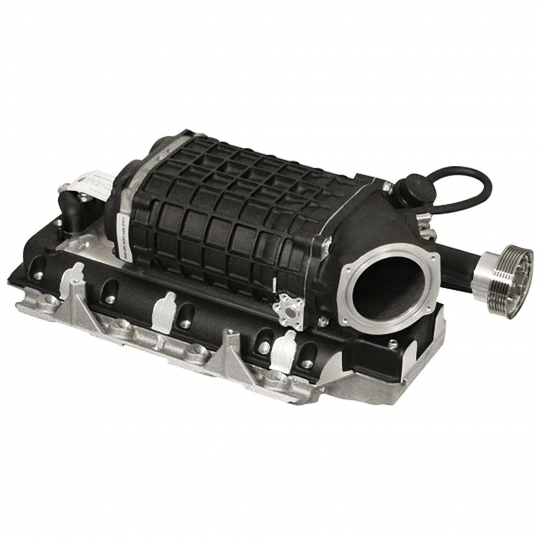

TVS1900 Hybrid Roots Supercharger System with Intercooler

The Magnuson TVS1900 Hybrid Roots Style Supercharger system is engineered to provide a significant power increase for compatible GM trucks and SUVs. It generates 6 psi of boost, resulting in approximately 120 horsepower and 120 foot-pounds of torque at the rear wheels, enhancing acceleration and passing power. Key features include a TVS1900 Hybrid-roots supercharger with a 180-degree rotor rotation for a straight airflow path and an internal bypass valve that minimizes parasitic loss. The supercharger utilizes high-helix, four-lobe rotors with 160 degrees of twist for improved efficiency and thermal management, capable of a 2.4 pressure ratio. The package also boasts a redesigned inlet and outlet for better air handling and acoustic design for reduced noise and vibration. Included in the system are a patented cast-aluminum high-velocity-port intake manifold, a Liquid-to-Air Intercooler, and eight high-flow fuel rails with front and rear crossovers. This is a 100% complete bolt-on system designed for installation in one day without requiring any hood modifications. It also utilizes all factory "push-lock" connectors for seamless integration. Fitment is specific to 2007-2008 Cadillac Escalade 6.2L, 2007-2008 GMC Yukon Denali 6.2L, 2007-2008 GMC Yukon XL 1500 6.0L, 2007-2008 GMC Yukon XL 2500 6.0L, 2007-2008 GMC Yukon XL Denali 6.2L, 2007-2008 Chevrolet Suburban 1500 6.0L, 2007-2008 Chevrolet Suburban 2500 6.0L, and 2007-2008 Chevrolet Avalanche 1500 6.0L. An SCT Handheld Programmer is included for 2010 5.3L applications. The system is CARB EO# D-488-19 compliant. The hardware comes with a standard 3-year/36,000-mile warranty on the supercharger, and electronics have a 1-year limited warranty. Optional powertrain warranties are available. Maintenance requires only an oil change every 80,000-120,000 miles.
