Engines and Components› Cylinder Heads and Components

Trick Flow

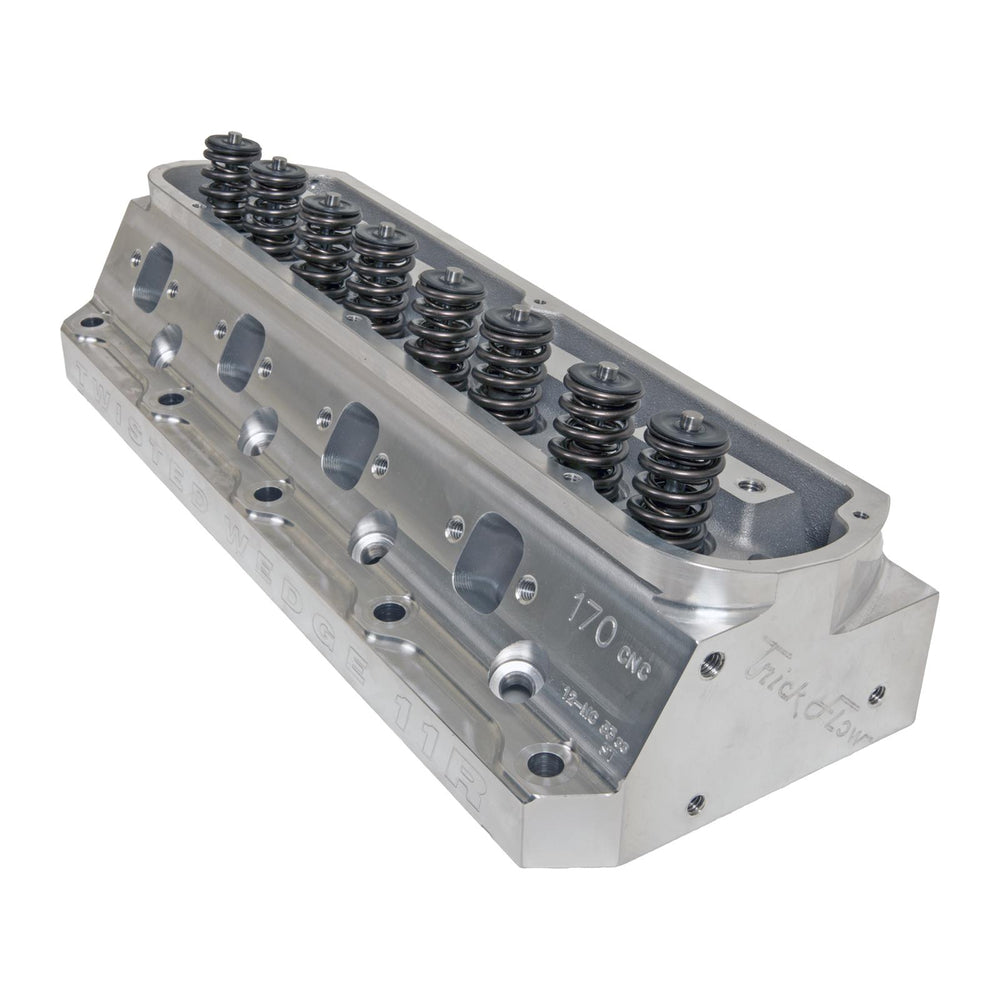

Twisted Wedge 11R 170 Cylinder Head

Name: Twisted Wedge 11R 170 Cylinder Head
Brand: Trick Flow
SKU: TFS-52515301-C00

$1,319.19

SKU: TFS-52515301-C00

Free Shipping over $200

$100 Minimum Order

Non-Returnable Item

DIY PRO SHOP

Advanced — 4+ hours

Overview

The Trick Flow Twisted Wedge 11R 170 is a set of cylinder heads designed for small block Ford engines. These heads feature a CNC-machined, street-ported design with 53cc combustion chambers and 170cc intake runners. They are set up for hydraulic roller camshafts and include many components such as intake and exhaust valves, valve springs, retainers, locks, valve stem seals, rocker arm studs, guideplates, valve guides, and valve seats.

Show original supplier description

The Trick Flow® Twisted Wedge® 11R 170 Cylinder Heads represent an evolution of Trick Flow's track-proven Twisted Wedge® design, optimized for modern small block Ford engines. Utilizing advanced 3D solid modeling and CAD tools, these heads offer enhanced performance potential compared to previous iterations. These assembled aluminum cylinder heads feature 170cc CNC-ported intake runners and 66cc exhaust runners, with a 53cc combustion chamber volume. The intake ports are rectangular, and the exhaust ports are square, with standard port locations. The unique Twisted Wedge® combustion chamber design, combined with modified 11-degree intake and 13-degree exhaust valve angles, promotes improved airflow and performance. The heads are CNC-machined for dimensional accuracy and balanced flow, featuring a standard resolution surface finish on the runners. Included with these heads are 2.020-inch intake valves and 1.600-inch exhaust valves, dual valve springs capable of handling up to 0.600-inch lift, chromoly steel retainers, 7-degree locks, and bronze valve guides. They are set up for hydraulic roller camshafts and feature 3-angle valve seats made from ductile iron. The notes indicate that for blocks machined for 7/16 in. head bolts, the use of TFS-51400419 head bolt bushings is required. These are non-emissions, street-ported heads sold individually.

Product descriptions are provided by our supplier partners and may not always be perfectly accurate. Not sure this fits? or call (760) 282-4645 and we’ll verify before you order.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

Brand	Trick Flow
Part Number	TFS-52515301-C00
Category	Engines and Components

Videos

1979-1995 Mustang Trickflow Twisted Wedge 11R Cylinder Heads - Dyno

Trick Flow 11r Head Review With Real Flow Numbers

Making Serious Power on Retro 5.0 With a Trick Flow 11R Top End Kit

SBF Trick Flow Heads

Twisted Wedge 170 Cylinder Head - Trick Flow Specialties

SIM TESTING My 347 Engine! // TrickFlow 11r 190 Head Install

How To Install/Adjust Roller Rockers - SBF With New TrickFlow 11R Heads

Trickflow Twisted Wedge TW 170 head back from porting!

Trick Flow 170cc Twisted Wedge 11R Aluminum Cylinder Heads (1979-1995)

First Run with New Trick Flow Kit

TrickFlow Twisted Wedge 170 Heads

Sn95 Mustang Trickflow Top End Dyno 11r Heads Stage 2 Cam
