Universal Oil Cooler

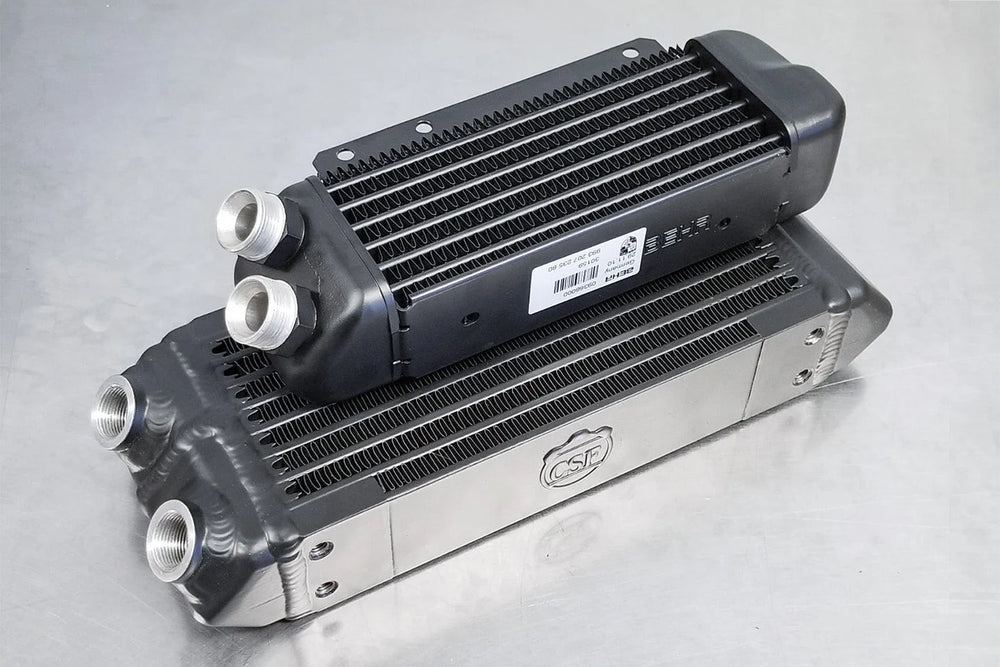

The CSF #8119 is CSF's most compact universal oil cooler, offering flexibility for mounting in tight locations and diverse configurations. This oil cooler features 8 rows of high-pressure bar/plate cooling in a dual-pass design. It comes equipped with universal M22 x 1.50 female fittings located on the same side, angled at 40 degrees, and is intended for use with M30, -16AN, or -12AN union adapters. The overall dimensions are 13" L x 4.75" H x 2.25" W, with a core surface area of 9.85" L x 4.72" H x 2.25" W. It has a fluid capacity of 0.53L (0.56 qt). The CSF #8119 is particularly popular as a supplementary engine oil cooler for air-cooled Porsches, such as the 964 and 993 models. It can serve as an OEM+ upgrade for the Porsche 993 Turbo/S & GT2 front oil cooler, offering a larger, more robust, and cost-effective alternative to the OE unit. It is also used as an additional oil cooler for the 964 and 993, often installed in series with the original cooler. Third-party kits from Euro Parts West and CARGRAPHIC are available for specific Porsche 964 and 993 applications, often requiring minor modifications such as trimming the original air duct cover.
