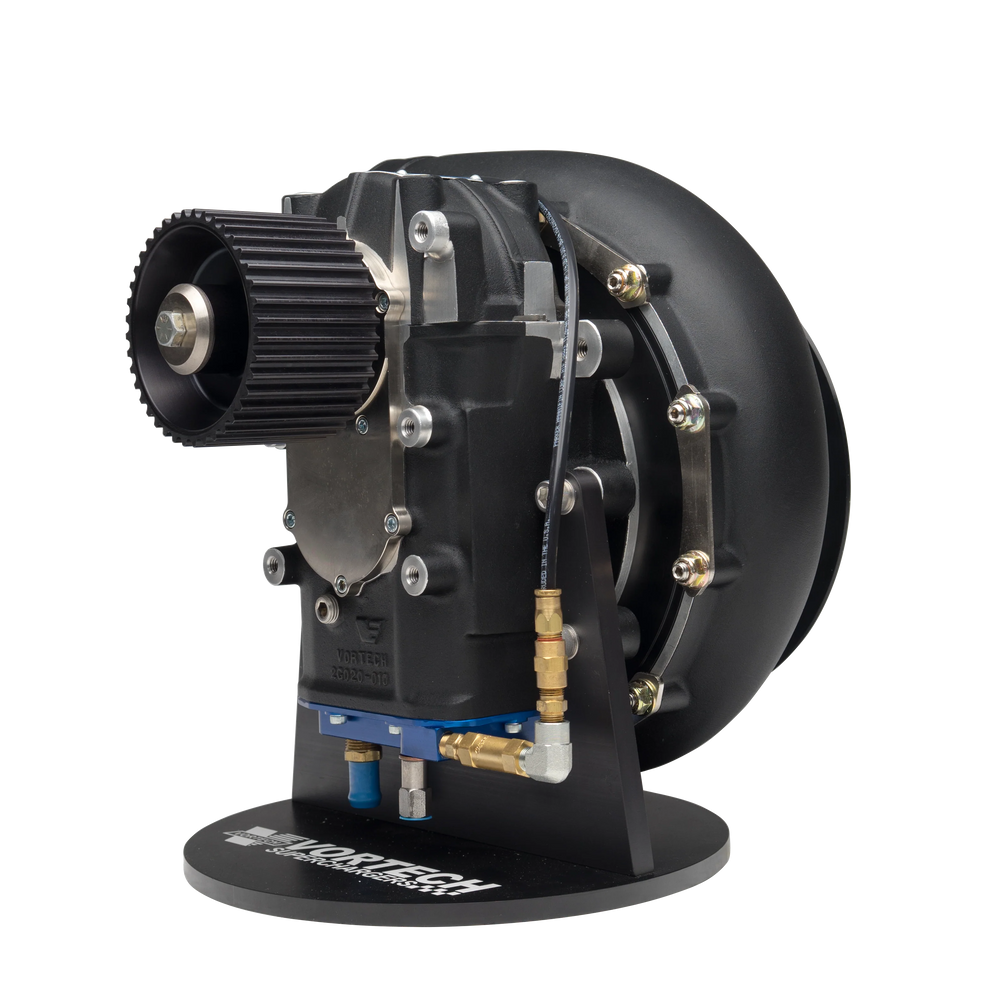

V-30 102A Straight Discharge CW Rotation Black Finish

The V-30 102A Supercharger replaces the V-24 Xi-B. It features a high-efficiency, 5-Axis machined billet impeller and high-diffusion housing. Designed for over 1,000HP racers, it incorporates many years of racing compressor knowledge. The patented design employs a unique impeller shaft support system for high horsepower drag racing and offshore boat-racing durability. Its modular design allows a wide range of compressor stages. All V-30 series superchargers share a 4.21:1 internal step-up ratio and are engine oil lubricated or can use an auxiliary system. The V-30 102A is one of the smaller compressors in the V-30 family, yet it delivers well over 1,500HP. The housing is designed to fit in applications where space is a concern, while delivering twice the power of a typical roots type system. Current Vortech V-24 Xi superchargers can be upgraded to the V-30 102A or 105A.
