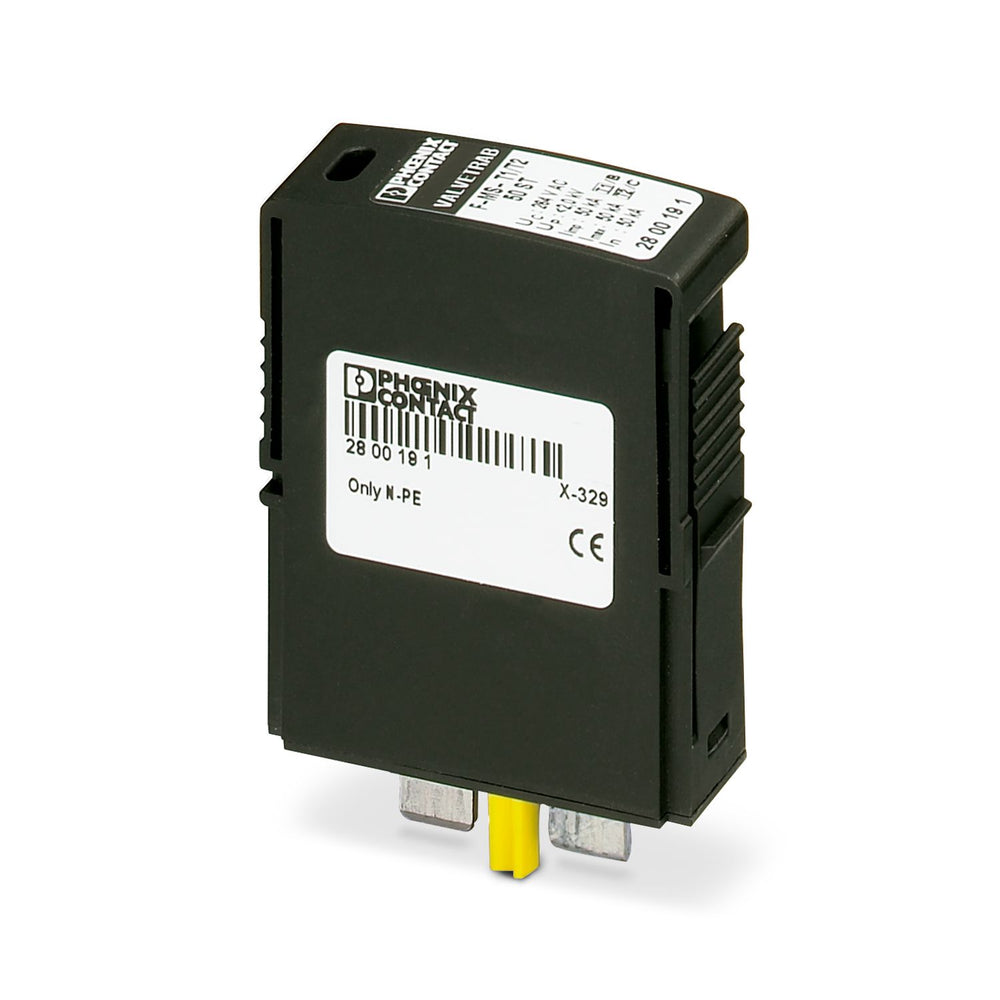

VAL-MS-T1/T2 335/12.5/1+1-FM Surge Arrester

The Phoenix Contact VAL-MS-T1/T2 335/12.5/1+1-FM is a universal varistor-based plug-in lightning and surge arrester. It is engineered for 1-phase power supply networks utilizing a 3-conductor system with separate Neutral and Protective Earth lines (L1, N, PE). This Type 1+2 surge protection device offers a discharge capacity of 12.5 kA per position, making it suitable for lightning protection levels III and IV. Key features include a vibration-resistant latching mechanism to ensure the plug remains securely in place and a remote indication contact for system monitoring. Installation is designed to be rapid, utilizing bridges and an industry-standard overall width of 1 HP. The pluggable protection modules facilitate easy testing and insulation measurement. The arrester has a voltage rating of 335VAC.
