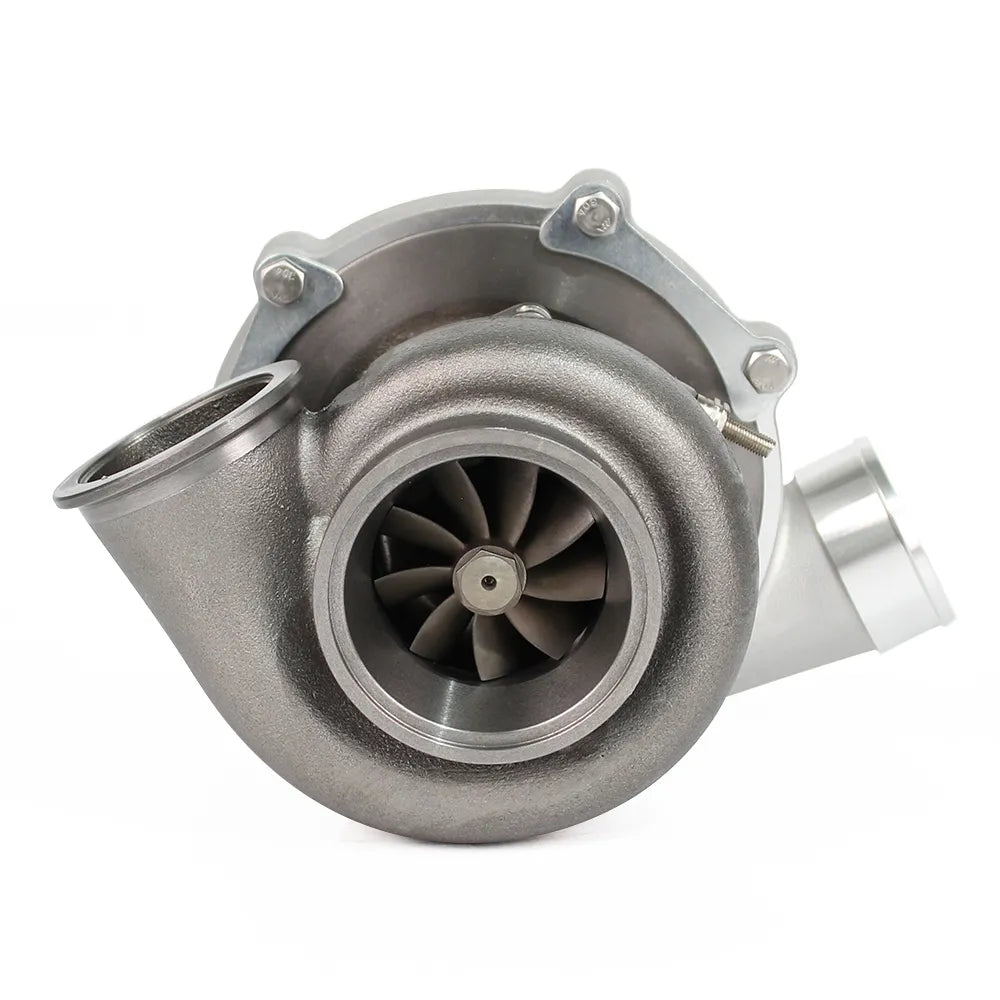

VSR 62/62 DBB Gen3 Turbocharger

The VS Racing VSR 62/62 DBB Gen3 turbocharger is engineered for optimal response and performance. It utilizes a dual ceramic ball bearing system and a 9-blade Next Gen billet compressor wheel with extended tapered tip technology. The turbine side features a 9-blade Next Gen aero Inconel 713c turbine wheel. This turbocharger includes an anti-surge ported-shroud compressor inlet with an integrated speed sensor port. Key specifications include a 62*76mm compressor wheel and a 68*62mm turbine wheel. The compressor inlet is designed for a 4” hose, with a 2.0” slip-fit outlet. The turbine inlet options accommodate T3, T4, or DV housings, and the turbine outlet is a 3” V-Band. Water ports are M14 x 1.5, and the oil feed is 7/16-24 UNF with a -4AN restrictor. The oil drain is a standard T3 small frame with 1.5″ bolt spacing. Multiple turbine housing options are available, including T3 (0.82 A/R), T4 (0.82 A/R), Dual V-Band (.83 A/R, 1.01 A/R, 1.21 A/R), and T4 Divided (0.85 A/R). This allows for customization to suit various engine builds and performance goals.
