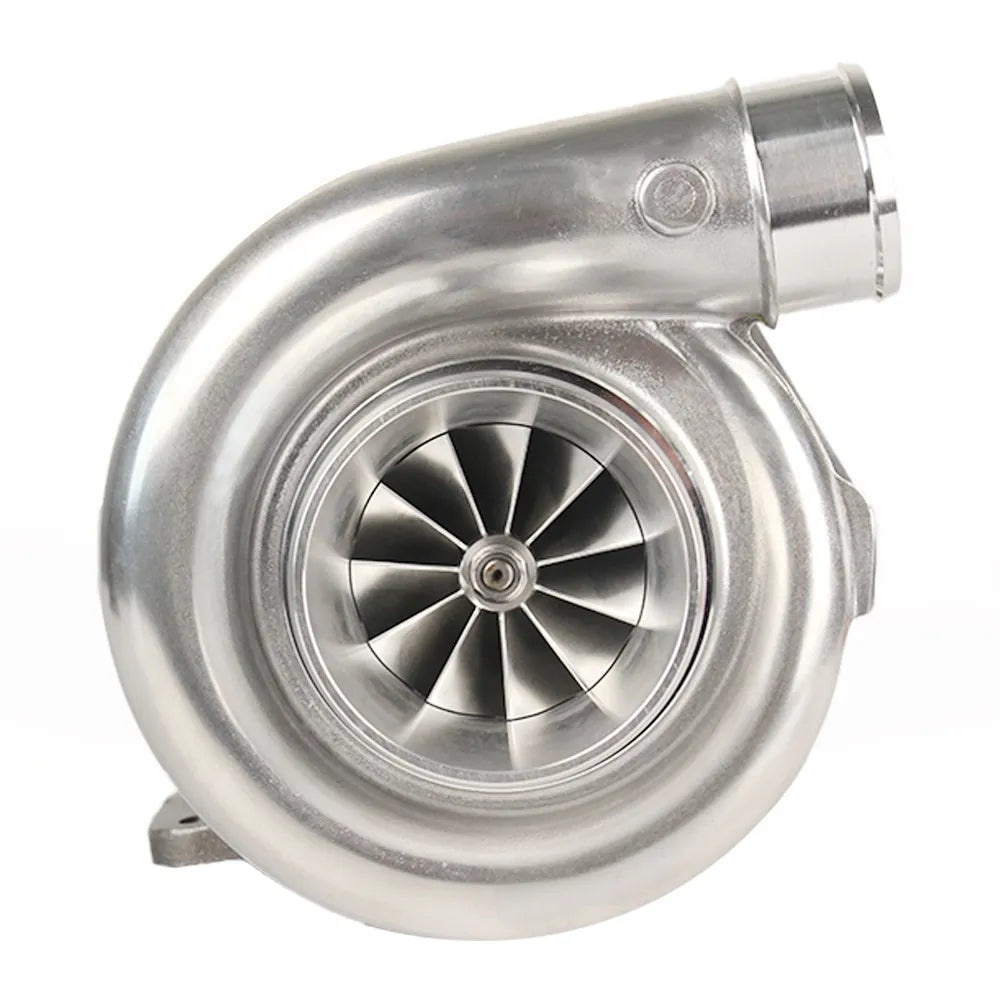

VSR 76/65 Billet T-Series Turbocharger

The VS Racing VSR 76/65 Billet is a T-Series turbocharger engineered for significant performance gains, capable of supporting up to 1000 horsepower. This unit features a robust journal bearing system for durability and reliability under demanding conditions. The compressor measures 76mm with a 102mm exducer, paired with a 65mm turbine that has a 74mm exducer. Users can select from three turbine housing options: .68 AR, .81 AR, or .96 AR, allowing for customization based on specific engine build and powerband goals. The turbo is equipped with a T4 undivided inlet flange and a 3-inch V-band outlet, with an outside diameter of 3 and 5/8 inches. Key specifications include a 2.5-inch compressor outlet with a slip-fit design, and an external wastegate type. For lubrication, it requires a 1/8 NPT to 4AN oil feed and includes a 10AN angled oil drain with M8x1.25 thread pitch. The VSR 76/65 Billet is an open volute type and does not feature a ported compressor housing. This turbocharger offers a versatile airflow solution for enthusiasts looking to enhance their vehicle's power output.
