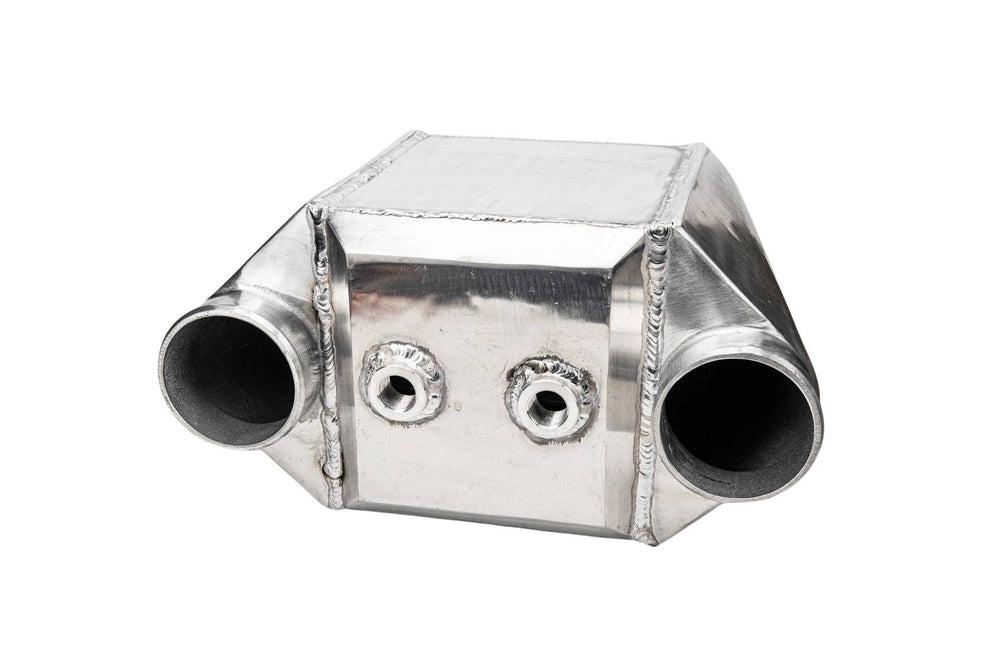

Water-to-Air Intercooler

The Frozen INT000212 is an enormous water-to-air intercooler, described as being more than five times larger than the smallest core available. It is recommended for applications up to 2000 horsepower and 2500 CFM, with an exceptionally low pressure drop of less than 0.5 PSI. Constructed from 100% lightweight aluminum, this intercooler avoids the use of epoxy in its core. It features a fin pitch of 21 fins per inch, with separate densities for the air side (12.5 fins/inch) and water side (8.5 fins/inch). The core size is 9.5"x9"x9", with 4" inlet and outlet connections located on the same side. The maximum operating pressure is 70 PSI. It is crucial to ensure this intercooler will fit your application before ordering, as its proportions are noted as being quite large. The product page also warns that some intercoolers sold online may not have true water-to-air cores, which can significantly impact efficiency. This unit is guaranteed to be a genuine water-to-air intercooler core. A complete liquid-to-air intercooler setup requires additional components such as a water pump, a heat exchanger (radiator), and potentially a reservoir. All necessary parts are available separately.
