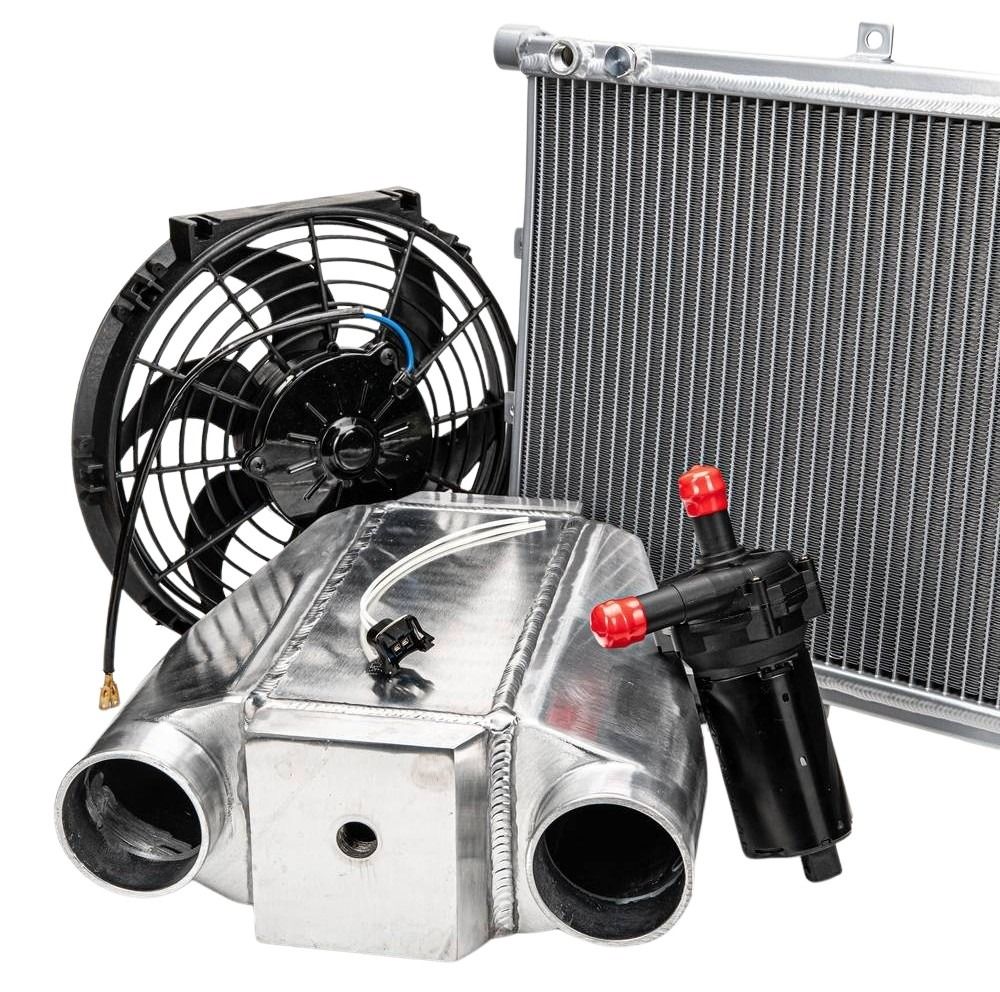

Water-to-Air Intercooler Core

The Frozen Boost Type 14 is a dedicated water-to-air intercooler core engineered for superior cooling efficiency in performance vehicles. Constructed from 100% lightweight aluminum, it avoids epoxy in its core assembly to ensure durability and optimal heat transfer. This intercooler is designed for exceptional performance, recommended for airflow exceeding 700 CFM, and features a remarkably low pressure drop of under 0.1 PSI, a significant advantage over many air-to-air intercooler designs. Key specifications include a 3.0" air inlet and outlet, making it compatible with a wide range of intake piping. The water connections utilize standard 1/2" NPT fittings. The core itself measures 10"x4.5"x4.5", with dimensions increased by the end tanks. The intercooler is built to withstand a maximum water pressure of 70 PSI, ensuring reliability under demanding conditions. The Type 14 designation signifies that both the air inlet and outlet are positioned on the same side of the core, a configuration that can simplify plumbing in certain installations. This intercooler core is a true water-to-air design, featuring smaller water passages compared to air passages. This design is crucial for achieving the intercooler's compact size and minimal pressure drop. It is important to distinguish this from air-to-air cores adapted for water cooling, which can lead to significant efficiency losses. Frozen Boost emphasizes that their products use genuine water-to-air core designs.
