Wehrli 06-10 Duramax LBZ/LMM Intercooler Outlet Elbow Kit - Bengal Blue
SKU: W005 WCF100466-BB
Advanced — 4+ hours
Description
Part #: WCF100466-BB

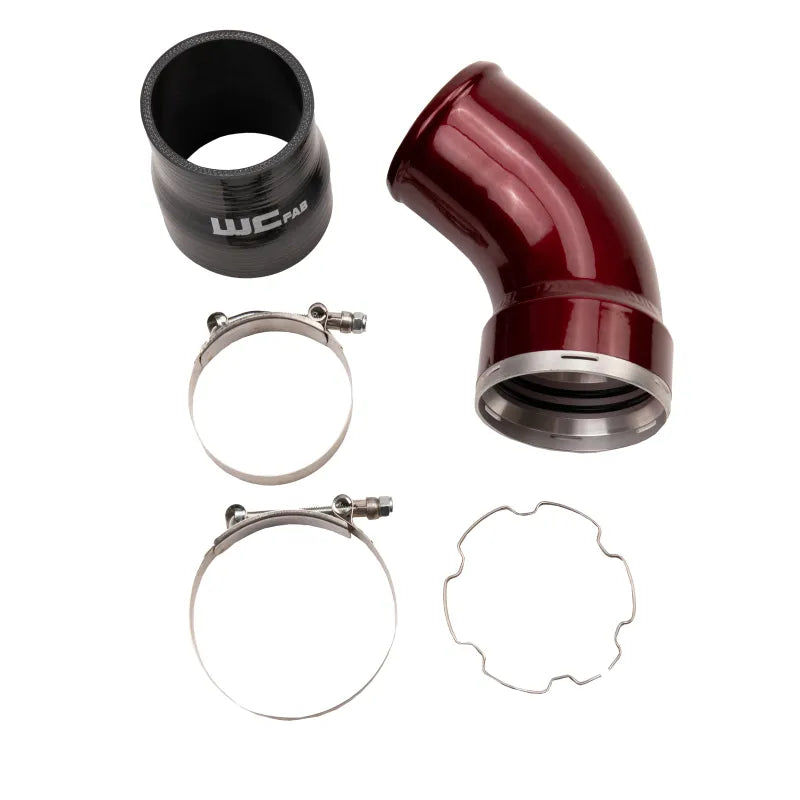

The 3.5" High Flow Intercooler Outlet Elbow for 2006-2010 LBZ/LMM Duramax replaces the factory plastic piece pipe with a high flow, 14 ga. aluminum fabricated 3.5" pipe. This part uses a CNC machined flange with a double o-ring seal, comes supplied with a new wire clip ring, and uses an upgraded silicone reducer boot with stainless steel t-bolt clamps to withstand higher boost pressures than the factory components to increase reliability and eliminate blown factory boots and horsepower robbing boost leaks. Finished in your choice of custom powder colors to match your existing WCFab products.
Wehrli Custom Fab Intercooler Outlet Elbow Kit, for 06-10 Duramax LBZ/LMM, Bengal Blue
MIA's Description
Key features include 14-gauge aluminum construction, a CNC machined billet aluminum flange with double O-rings for a superior seal, and it is made in the USA. The kit requires no tuning. It is available in a custom powder coat Bengal Blue finish, among other colors.
Fitment
Fitment Guaranteed
Don’t gamble
on fit.
Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.
Available on iOS & Android
Specifications
| Brand | Wehrli |
| Part Number | W005 WCF100466-BB |
