Wehrli 06-10 Duramax LBZ/LMM Intercooler Outlet Elbow Kit - Flat Black
SKU: W005 WCF100466-FB
Beginner — under 30 min
Overview
This kit features a CNC-machined billet aluminum flange with double O-rings for an improved sealing surface and includes an HD silicone reducer boot and stainless steel t-bolt clamps to handle higher boost pressures, enhancing reliability and preventing boost leaks. The elbow is finished in a durable custom powder coat.
Show original supplier description
Part #: WCF100466-FB

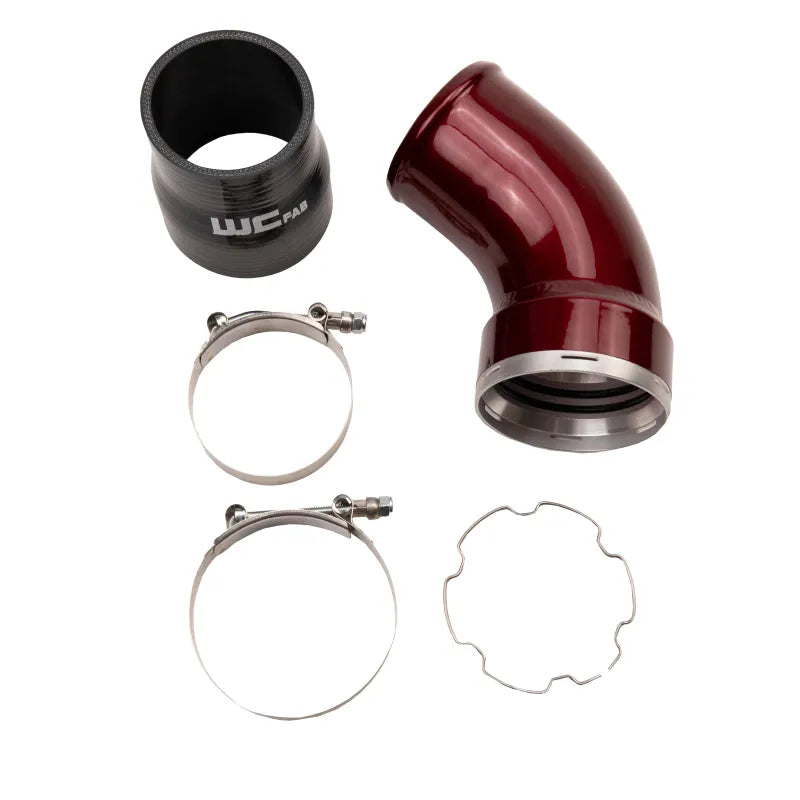

The 3.5" High Flow Intercooler Outlet Elbow for 2006-2010 LBZ/LMM Duramax replaces the factory plastic piece pipe with a high flow, 14 ga. aluminum fabricated 3.5" pipe. This part uses a CNC machined flange with a double o-ring seal, comes supplied with a new wire clip ring, and uses an upgraded silicone reducer boot with stainless steel t-bolt clamps to withstand higher boost pressures than the factory components to increase reliability and eliminate blown factory boots and horsepower robbing boost leaks. Finished in your choice of custom powder colors to match your existing WCFab products.
Wehrli Custom Fab Intercooler Outlet Elbow Kit, for 06-10 Duramax LBZ/LMM, Flat Black
Product descriptions are provided by our supplier partners and may not always be perfectly accurate. Not sure this fits? or call (760) 282-4645 and we’ll verify before you order.
Fitment
Fitment Guaranteed
Don’t gamble
on fit.
Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.
Available on iOS & Android
Specifications
| Brand | Wehrli |
| Part Number | W005 WCF100466-FB |
Videos
WCFab LBZ / LMM Duramax Passenger Side Intercooler Outlet Elbow Kit
WCFab 2006 - 2010 LBZ/LMM Duramax 3.5" Passenger (COLD) Side Intercooler Pipe Kit
WCFab 2006 - 2010 LBZ / LMM Duramax High Flow Intake Horn
WCFab 2006 - 2010 LBZ / LMM Duramax High Flow 3" Y Bridge Kit
2006-2010 LBZ|LMM Duramax High Flow Intake Bundle Kit
How to Install Wehrli Custom Fab Hot Side Intercooler Pipe 04.5-10 Duramax
2006-2010 LBZ | LMM Duramax Stage 3 High Flow Intake Bundle Kit
2011-2016 LML Duramax High Flow Intercooler Pipe Kit
