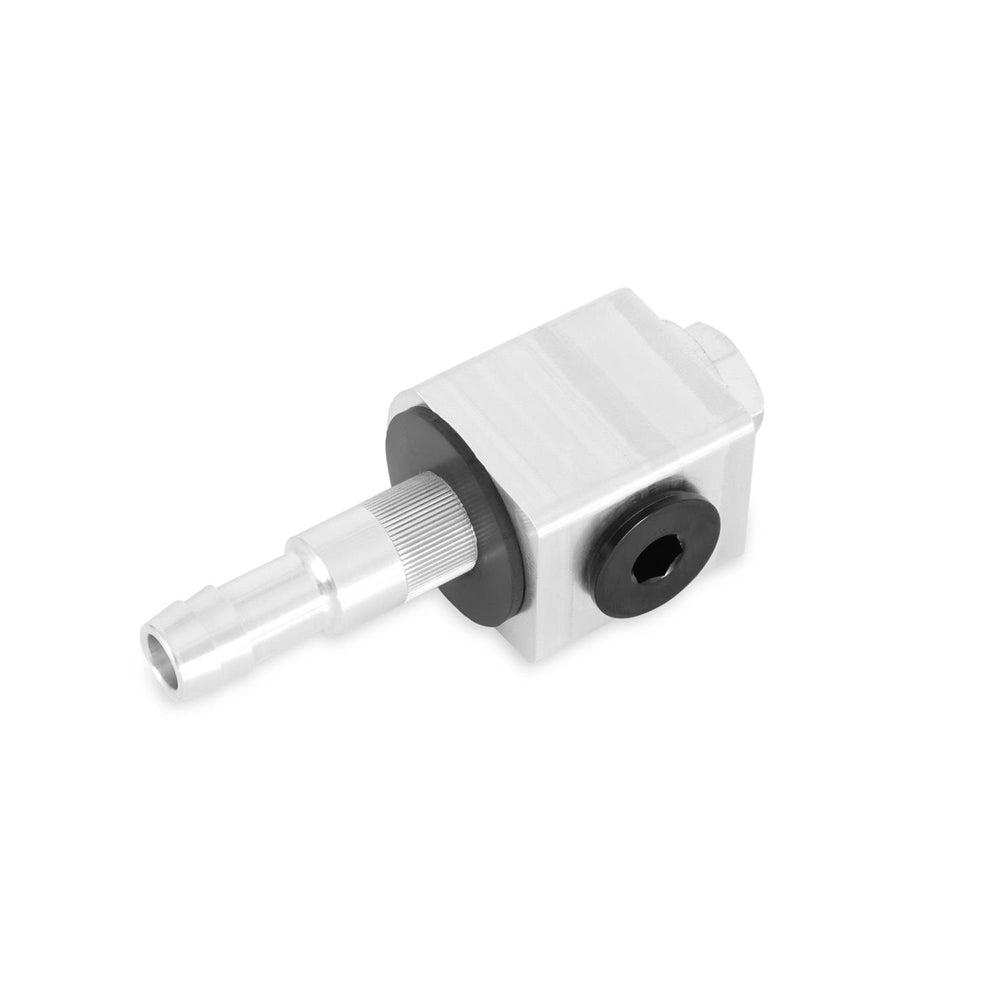

WELD-LESS FUEL RETURN FITTING

Part #: 166025ERL

Introducing the Earl's Universal Weld-less Fuel Return Fitting! This new design eliminates the need to access the inside of the tank or cell! The fitting installs just like a rivet nut. Just drill a hole, install return tube, insert the fitting with the rubber washer, and tighten the bolt! The fitting collapses or "mushrooms" from the underside which secures the fitting to the tank creating a perfect seal to the tank mating surfaces! The fitting is machined out of 6061 Billet Aluminum and has been tested with tank material thicknesses up to 1/8" (0.125 inches). Each kit includes an oversized Viton Fluoroelastomer Rubber Sealing Washer, Hex Head Screw with Steel Washer, -6AN Low Profile Port Plug with Viton O-Ring, and two tube options (Fixed and Flexible Nylon).

Features:

• No welding required!
• Low-profile design
• Accommodates 6AN, 8AN, 5/16" or 3/8" hose barb adapters (sold separately)
• Machined out of 6061 Billet Aluminum
• Integrated 3/8" hose barb feature effectively routes returning fuel below surface level
• Eliminate overhead splash
• Maintain consistent fuel pressure by keeping air out of fuel system
• Knurled ribbed body helps prevent rotation
• Suitable for pump gas and E85
• Compatible with Steel or Aluminum tanks up to 1/8" thick
• Installs on flat horizontal surfaces mounted on top of tank
• Includes fixed & flexible in-tank fuel return tube
• Comes with 6AN ORB plug and installation hardware

Universal weld-less fuel return fitting for Electronic Fuel Injection (EFI) installations
