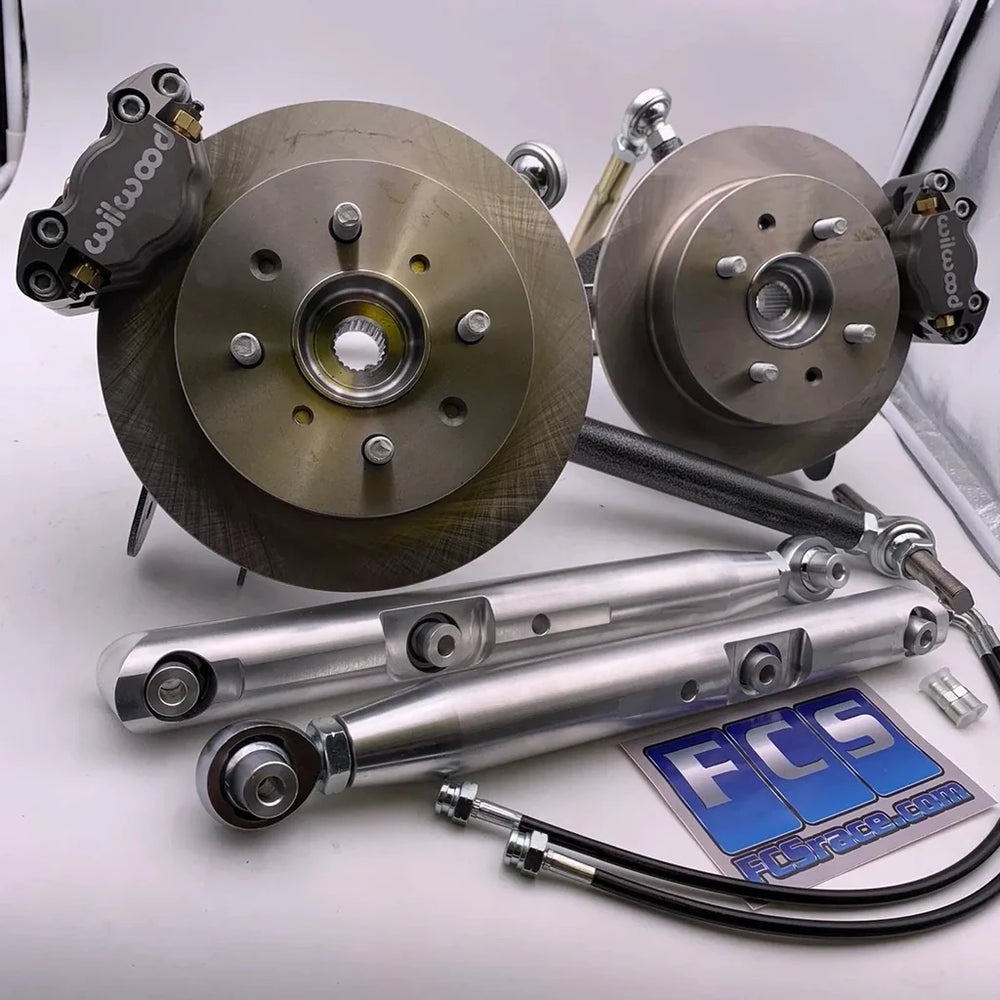

Wilwood Caliper and Rotor Kit

The FCS Race AWD Honda Kit provides a true bolt-in conversion for Honda vehicles, enabling the use of AWD with B and K series engines and 5-speed manual transmissions. The design allows for a small notch in the subframe for installation, and retains the OEM structure for potential conversion back to FWD. The comprehensive kit includes heat-treated and stress-tested rear trailing arms, 2-piston billet Wilwood Dynapro calipers with performance pads, OEM heat-treated rotors, DOT-approved stainless steel brake lines, and adjustable grade 8 toe links. It also features a rear 2-piece bolt-in subframe and carrier bearing kits compatible with both Wagovan and CRV/Pilot/Element drive shafts. The 4x100 bolt pattern is standard, with options for axle kit length to accommodate wider tires or an OE setup. This system is tested up to 1000HP and is intended for off-road racing applications such as drag, road, circuit, time attack, and rally. Donor parts required for completion include a 98-01 or 02-06 Honda CRV manual 5-speed transmission with shifter box and cables, or an 88-91 Civic Wagon 4RT rear differential, driveshaft, and axles for Wagovan applications. All kits must use equal length axles, regardless of wheel offset adjustments.
