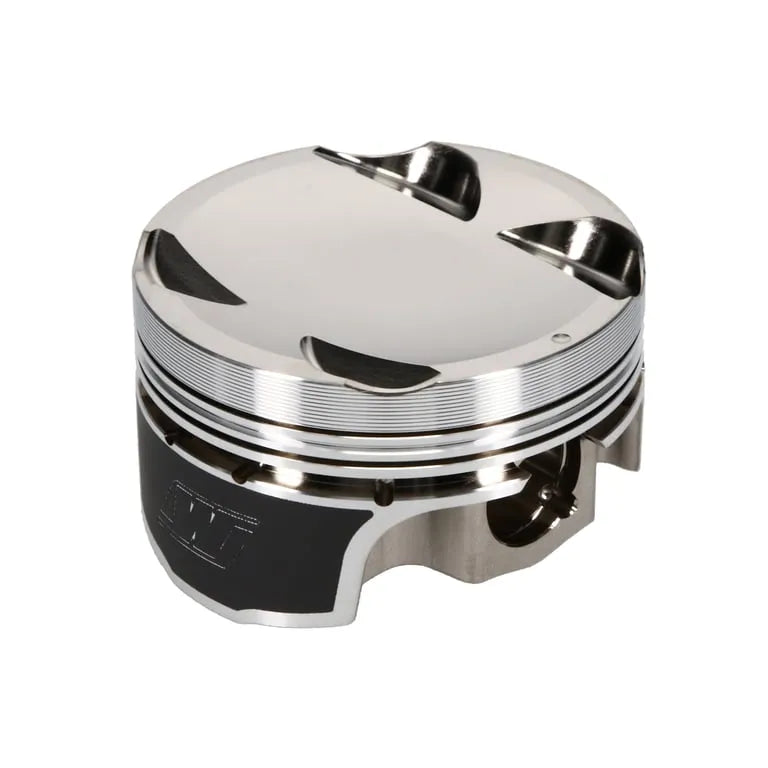

Wiseco Mitsubishi 4G63 87.00 mm Bore 28.70 mm CH -12.00 CC Piston Set

Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength. Features ArmorGlide™ Skirt Coating for seizure resistance, friction reduction, and quieter operation. Fully machined crown features precision ring grooves, anti-detonation groove, and additional ring seal improving features. Designed and built to withstand heavy to severe duty performance applications. Not CARB legal.

Technical Specs:
Bore: 87.00 mm (3.425 inches)
Stroke: 88mm (3.465 inches)
Rod Length: 156mm (6.142 inches)
Compression Height (CH): 28.70 mm (1.130 inches)
Dish: -12.00 CC
Pin: 22mm
Compression Ratio: 8.5:1
Piston Material: 2618 Forged
Includes: Set of 4 pistons, piston ring set.
Product Weight: 8.4 lbs

Compatibility:
This piston set is designed for the Mitsubishi 4G63 2.0L engine (7-Bolt), Generation 2 / 93-01. Please ensure your vehicle uses this engine type before purchase.
