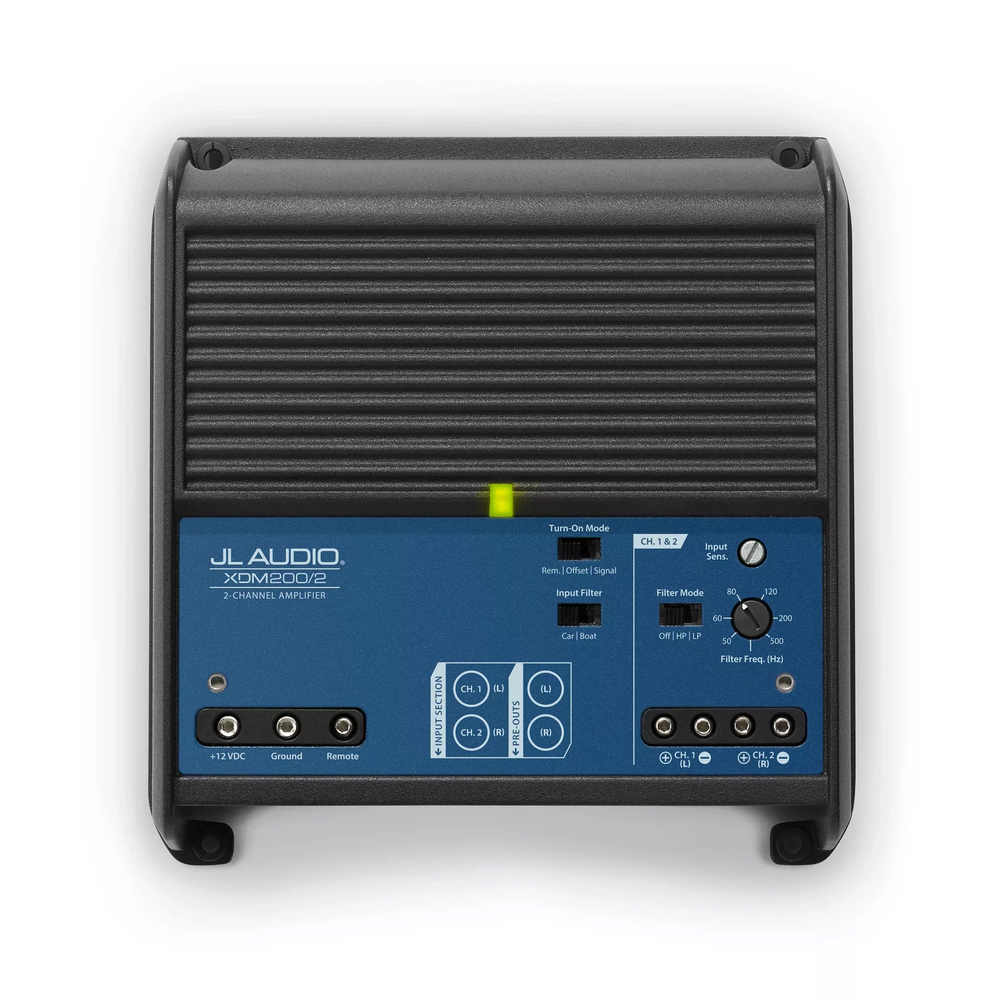

XDM200/2 2-Channel Class D Full-Range Amplifier

The JL Audio XDM200/2 is a versatile 2-channel Class D full-range amplifier built to deliver powerful audio performance in both automotive and marine environments. Engineered with JL Audio's proprietary NexD™ high-speed switching technology, this compact amplifier provides an impressive 100 watts per channel into 2 ohms (or 75 watts into 4 ohms) with remarkably low distortion and high efficiency. This advanced technology allows for full bandwidth Class D operation from a compact chassis. Designed for durability, the XDM200/2 features marine-grade materials to withstand moisture and corrosion, making it suitable for boat installations. Its sleek black powder-coat finish protects the unit, and all controls are kept accessible yet protected under a gasketed, removable top cover. The amplifier also includes an exclusive dual-mode input filter for noise-free performance in various installations. For enhanced customization, the XDM200/2 is equipped with a 12 dB/octave filter that can function as either a low-pass or high-pass filter, with continuously variable cutoff frequency selection from 50-500 Hz. Additionally, an optional HD-RLC or MHD-RLC (water-resistant) remote level controller can be purchased separately, allowing for convenient adjustment of the amplifier's level directly from the driver's seat or cockpit. Installation is simplified with automatic turn-on capabilities, which can be activated via signal sensing or DC-offset sensing, making it easy to upgrade factory systems. The amplifier also offers a buffered, pass-through preamp output for system expansion.
